Customize UI Appearance

If you are using the default interface from TapTalk.io UI implementation type, you can customize the appearance of the chat UI. To do this, you can add the methods below to your AppDelegate class.

Note: Don't forget to add #import <TapTalk/TAPStyleManager.h>

Default Color Theme

Customize default color theme

To customize the chat UI's color theme, you can define your own color by accessing TAPStyleManager using the following method.

#import <TapTalk/TAPStyleManager.h>

//You can use this method
[[TAPStyleManager sharedManager] setDefaultColor:COLOR forType:TYPE];

//For example
//Set your default primary color
[[TAPStyleManager sharedManager] setDefaultColor:COLOR forType:TAPDefaultColorPrimary];

Parameters COLOR: (UIColor) Your preferred color TYPE: (Enum TAPDefaultColor) type of default color

Note: you can override the default color values partially, but it is recommended to change all of them accordingly to make sure the color theme within the chat UI matches

Obtain default color theme

You can get customized chat UI's color theme by accessing TAPStyleManager using the following method.

#import <TapTalk/TAPStyleManager.h>

//Obtain default primary color
UIColor *color = [[TAPStyleManager sharedManager] getDefaultColorForType:TAPDefaultColorPrimary];

TAPDefaultColorType

Description

TAPDefaultColorPrimary

Your default primary brand color, will be used in various style, icons and shapes in the TapTalk.io SDK.

TAPDefaultColorPrimaryExtraLight

Your default primary brand color with extra light accent, will be used in various style, icons and shapes in the TapTalk.io SDK.

TAPDefaultColorPrimaryLight

Your default primary brand color with light accent, will be used in various style, icons and shapes in the TapTalk.io SDK.

TAPDefaultColorPrimaryDark

Your default primary brand color with dark accent, will be used in various style, icons and shapes in the TapTalk.io SDK.

General Colors

Customize general colors

The following are the values used as general component colors, you can set the colors by calling this method in TAPStyleManager.

#import <TapTalk/TAPStyleManager.h>

//You can use this method
[[TAPStyleManager sharedManager] setDefaultColor:COLOR forType:TYPE];

//For example
//Set your default primary color
[[TAPStyleManager sharedManager] setDefaultColor:COLOR forType:TAPDefaultColorPrimary];

Parameters COLOR: (UIColor) Your preferred color TYPE: (Enum TAPDefaultColor) type of default color

Obtain general colors

You can get general color by accessing TAPStyleManager with the following method.

#import <TapTalk/TAPStyleManager.h>

//Obtain default primary color
UIColor *color = [[TAPStyleManager sharedManager] getDefaultColorForType:TAPDefaultColorPrimary];

TAPDefaultColorType

Description

TAPDefaultColorSuccess

Identifies successful actions.

TAPDefaultColorError

Identifies errors or destructive actions.

TAPDefaultColorTextLight

Light text color on dark background.

TAPDefaultColorTextMedium

Medium text color generally used on subtitles or placeholders.

TAPDefaultColorTextDark

Dark text color on light background.

TAPDefaultColorIconPrimary

Primary colored icons used on light background.

TAPDefaultColorIconWhite

White icons used on colored background.

TAPDefaultColorIconGray

Default color for gray icons.

TAPDefaultColorIconSuccess

Default icon color for successful actions.

TAPDefaultColorIconDestructive

Default icon color for errors or destructive actions.

Components Colors

Customize component colors

The following are the values used as component colors, you can set the colors by calling this method in TAPStyleManager.

#import <TapTalk/TAPStyleManager.h>

//You can use this method
[[TAPStyleManager sharedManager] setComponentColor:COLOR forType:TYPE];

//For example
//Set your navigation bar background
[[TAPStyleManager sharedManager] setComponentColor:COLOR forType:TAPComponentColorDefaultNavigationBarBackground];

//Set your text field cursor color
[[TAPStyleManager sharedManager] setComponentColor:COLOR forType:TAPComponentColorTextFieldCursor];

Parameters COLOR: (UIColor) Your preferred color TYPE: (Enum TAPComponentColor) type of component color

Obtain component colors

You can get component color by accessing TAPStyleManager with the following method.

#import <TapTalk/TAPStyleManager.h>

//Obtain default primary color
UIColor *color = [[TAPStyleManager sharedManager] getComponentColorForType:COMPONENT_COLOR_TYPE];

Parameters COMPONENT_COLOR_TYPE: (Enum TAPComponentColor) type of component color

Component Color Type

Default Components

TAPComponentColorType

Description

TAPComponentColorDefaultNavigationBarBackground

Set the color for all navigation bar background.

TAPComponentColorDefaultBackground

Set the color for all view background.

Chat Bubble

TAPComponentColorType

Description

TAPComponentColorDefaultRightBubbleBackground

Set the background color for all chat bubbles sent by user.

TAPComponentColorDefaultRightBubbleDarkBackground

Set the darker background color for all chat bubbles sent by user.

TAPComponentColorDefaultLeftBubbleBackground

Set the background color for all chat bubbles sent by others.

TAPComponentColorDefaultLeftBubbleDarkBackground

Set the darker background color for all chat bubbles sent by others.

Text Field

TAPComponentColorType

Description

TAPComponentColorTextFieldCursor

Set the color for textfield's cursor.

TAPComponentColorTextFieldBorderActive

Set the color for textfield's border in active state.

TAPComponentColorTextFieldBorderInactive

Set the color for textfield's border in inactive state.

TAPComponentColorTextFieldBorderError

Set the color for textfield's border in error state.

Button

TAPComponentColorType

Description

TAPComponentColorButtonActiveBackgroundGradientLight

Set the color for gradient background of the button (light) in active state, Currently TapTalk.io use 2 gradient color for button's background color in active state, if you wish to set one-tone color for the background, fill both gradient light and gradient dark with the same color.

TAPComponentColorButtonActiveBackgroundGradientDark

Set the color for gradient background of the button (dark) in active state, Currently TapTalk.io use 2 gradient color for button's background color in active state, if you wish to set one-tone color for the background, fill both gradient light and gradient dark with the same color.

TAPComponentColorButtonActiveBorder

Set the color for button's border in active state.

TAPComponentColorButtonInactiveBackgroundGradientLight

Set the color for gradient background of the button (light) in inactive state, Currently TapTalk.io use 2 gradient color for button's background color in inactive state, if you wish to set one-tone color for the background, fill both gradient light and gradient dark with the same color.

TAPComponentColorButtonInactiveBackgroundGradientDark

Set the color for gradient background of the button (dark) in inactive state, Currently TapTalk.io use 2 gradient color for button's background color in inactive state, if you wish to set one-tone color for the background, fill both gradient light and gradient dark with the same color.

TAPComponentColorButtonInactiveBorder

Set the color for button's border in inactive state.

TAPComponentColorButtonDestructiveBackground

Set the color for background of destructive button.

TAPComponentColorButtonIcon

Set the color for icon in button.

TAPComponentColorButtonIconPrimary

Set the color for icon in primary button.

TAPComponentColorButtonIconDestructive

Set the color for icon in destructive button.

Switch

TAPComponentColorType

Description

TAPComponentColorSwitchActiveBackground

Set the color for switch's background in active state.

TAPComponentColorSwitchInactiveBackgroud

Set the color for switch's background in inactive state.

Popup Dialog

TAPComponentColorType

Description

TAPComponentColorPopupDialogPrimaryButtonSuccessBackground

Set the color for right button's background in success state.

TAPComponentColorPopupDialogPrimaryButtonErrorBackground

Set the color for right button's background in error state.

TAPComponentColorPopupDialogSecondaryButtonBackground

Set the color for left button's background.

Unread Badge

TAPComponentColorType

Description

TAPComponentColorUnreadBadgeBackground

Set the color for circular unread badge's background.

TAPComponentColorUnreadBadgeInactiveBackground

Set the color for circular unread badge's inactive state background.

Table View

TAPComponentColorType

Description

TAPComponentColorTableViewSectionIndex

Set the color for table view's section index (alphabetical list in the right side of table view).

Search Bar

TAPComponentColorType

Description

TAPComponentColorSearchBarBorderActive

Set the color for search bar's border in inactive state.

TAPComponentColorSearchBarBorderInactive

Set the color for search bar's border in inactive state.

Media Preview

TAPComponentColorType

Description

TAPComponentColorSelectedMediaPreviewThumbnailBorder

Set the color for border in selected media preview thumbnail.

TAPComponentColorMediaPreviewWarningBackgroundColor

Set the color for background of warning info view in media preview.

Search

TAPComponentColorType

Description

TAPComponentColorSearchConnectionLostBackgroundColor

Set the color for background of search connection lost information view.

Chat Room Page

TAPComponentColorType

Description

TAPComponentColorChatRoomBackground

Set the color for chat room background view.

TAPComponentColorChatComposerBackground

Set the color for chat composer (text field for chat) background view.

TAPComponentColorQuoteLayoutDecorationBackground

Set the color for quote decoration background in chat room quote view.

TAPComponentColorRightBubbleQuoteDecorationBackground

Set the color for quote decoration in right message bubble.

TAPComponentColorLeftBubbleQuoteDecorationBackground

Set the color for quote decoration in left message bubble.

TAPComponentColorLeftBubbleBackground

Set the color for left side chat bubble view.

TAPComponentColorRightBubbleBackground

Set the color for right side chat bubble view.

TAPComponentColorLeftBubbleQuoteBackground

Set the color for left side quote view in chat bubble.

TAPComponentColorRightBubbleQuoteBackground

Set the color for right side quote view in chat bubble.

TAPComponentColorLeftFileButtonBackground

Set the color for left side button's background in file chat bubble.

TAPComponentColorRightFileButtonBackground

Set the color for right side button's background in file chat bubble.

TAPComponentColorIconQuotedFileBackgroundRight

Set the background color for quoted file icon in right message bubble.

TAPComponentColorIconQuotedFileBackgroundLeft

Set the background color for quoted file icon in left message bubble.

TAPComponentColorSystemMessageBackground

Set the color for background of system message bubble.

TAPComponentColorSystemMessageBackgroundShadow

Set the color for shadow of system message bubble.

TAPComponentColorFileProgressBackgroundPrimary

Set the color for progress bar when uploading or downloading in right file bubble message.

TAPComponentColorFileProgressBackgroundWhite

Set the color for progress bar when uploading or downloading in left file bubble message.

TAPComponentColorDeletedChatRoomInfoBackground

Set the color for deleted chat room information background view.

TAPComponentColorUnreadIdentifierBackground

Set the color for unread identifier background view.

Icon Colors

Customize icon colors

The following are the values used as icon colors, you can set the colors by calling this method in TAPStyleManager.

#import <TapTalk/TAPStyleManager.h>

//You can use this method
//Note: We use the same method to set component color and icon color
[[TAPStyleManager sharedManager] setComponentColor:COLOR forType:COMPONENT_COLOR_TYPE];

Parameters COLOR: (UIColor) Your preferred color COMPONENT_COLOR_TYPE: (Enum TAPComponentColor) type of component color

Obtain icon colors

You can get icon color by accessing TAPStyleManager with the following method.

#import <TapTalk/TAPStyleManager.h>

//Obtain icon color
//Note: We use the same method to get component color and icon color
UIColor *color = [[TAPStyleManager sharedManager] getComponentColorForType:COMPONENT_COLOR_TYPE];

Parameters COMPONENT_COLOR_TYPE: (Enum TAPComponentColor) type of icon color

Icon Color Type

Default Icons

TAPComponentColorType

Description

TAPComponentColorIconLoadingProgressPrimary

Set the color for icon loading progress with brand primary color

TAPComponentColorIconLoadingProgressWhite

Set the color for icon loading progress with default white color

TAPComponentColorIconChevronRightPrimary

Set the color for icon chevron right with brand primary color

TAPComponentColorIconChevronRightGray

Set the color for icon chevron right with default gray color

TAPComponentColorIconChecklist

Set the color for icon checklist

TAPComponentColorIconCircleSelectionActive

Set the color for icon selection in active state

TAPComponentColorIconCircleSelectionInactive

Set the color for icon selection in inactive state

TAPComponentColorIconLoadingPopupSuccess

Set the color for icon loading popup in success state

TAPComponentColorIconSearchConnectionLost

Set the color for icon lost search connection

TAPComponentColorIconChatRoomMessageSending

Set the color for icon sending message bubble in chat room

TAPComponentColorIconChatRoomMessageFailed

Set the color for icon failed message bubble in chat room

TAPComponentColorIconChatRoomMessageSent

Set the color for icon sent message bubble in chat room

TAPComponentColorIconChatRoomMessageSentImage

Set the color for icon sent image/video message with no caption

TAPComponentColorIconChatRoomMessageDelivered

Set the color for icon delivered message bubble in chat room

TAPComponentColorIconChatRoomMessageDeliveredImage

Set the color for icon delivered image/video message with no caption

TAPComponentColorIconChatRoomMessageRead

Set the color for icon read message bubble in chat room

TAPComponentColorIconChatRoomMessageDeletedLeft

Set the color for icon deleted right message bubble in chat room

TAPComponentColorIconChatRoomMessageDeletedRight

Set the color for icon deleted left message bubble in chat room

TAPComponentColorIconRemoveItem

Set the color for icon remove item

TAPComponentColorIconRemoveItemBackground

Set the color for icon remove item background

TAPComponentColorType

Description

TAPComponentColorIconNavigationBarBackButton

Set the color for icon back in navigation bar

TAPComponentColorIconTransparentBackgroundBackButton

Set the color for icon back button with transparent background

TAPComponentColorIconNavigationBarCloseButton

Set the color for icon close in navigation bar

TAPComponentColorIconClearTextButton

Set the color for clear text button icon

TAPComponentColorIconSearchBarMagnifier

Set the color for magnifier icon in search bar

Action Sheet Icons

TAPComponentColorType

Description

TAPComponentColorIconActionSheetDocument

Set the color for document icon in action sheet option

TAPComponentColorIconActionSheetCamera

Set the color for camera icon in action sheet option

TAPComponentColorIconActionSheetGallery

Set the color for gallery icon in action sheet option

TAPComponentColorIconActionSheetLocation

Set the color for location icon in action sheet option

TAPComponentColorIconActionSheetComposeEmail

Set the color for compose email icon in action sheet option

TAPComponentColorIconActionSheetCopy

Set the color for copy icon in action sheet option

TAPComponentColorIconActionSheetOpen

Set the color for open icon in action sheet option

TAPComponentColorIconActionSheetSMS

Set the color for SMS icon in action sheet option

TAPComponentColorIconActionSheetSendMessage

Set the color for Send Message icon in action sheet option

TAPComponentColorIconActionSheetViewProfile

Set the color for View Profile icon in action sheet option

TAPComponentColorIconActionSheetCall

Set the color for call icon in action sheet option

TAPComponentColorIconActionSheetReply

Set the color for reply icon in action sheet option

TAPComponentColorIconActionSheetForward

Set the color for forward icon in action sheet option

TAPComponentColorIconActionSheetTrash

Set the color for trash icon in action sheet option

Room List Page Icons

TapComponentColorType

Description

TAPComponentColorIconRoomListMuted

Set the color for muted icon in room list page

TAPComponentColorIconStartNewChatButton

Set the color for start new chat icon in room list page

TAPComponentColorIconRoomListSettingUp

Set the color for setting up icon in room list page

TAPComponentColorIconRoomListSetUpSuccess

Set the color for success setup icon in room list page

TAPComponentColorIconRoomListSetUpFailure

Set the color for fail to setup icon in room list page

TAPComponentColorIconRoomListRetrySetUpButton

Set the color for retry setup icon in room list page

TAPComponentColorIconRoomListMessageSending

Set the color for room list message sending icon

TAPComponentColorIconRoomListMessageFailed

Set the color for room list message failed icon

TAPComponentColorIconRoomListMessageSent

Set the color for room list message sent icon

TAPComponentColorIconRoomListMessageDelivered

Set the color for room list message delivered icon

TAPComponentColorIconRoomListMessageRead

Set the color for room list message read icon

TAPComponentColorIconRoomListMessageDeleted

Set the color for room list message deleted icon

New Chat Page Icons

TapComponentColorType

Description

TAPComponentColorIconMenuNewContact

Set the color for new contact option icon in new chat page

TAPComponentColorIconMenuScanQRCode

Set the color for scan QR code option icon in new chat page

TAPComponentColorIconMenuNewGroup

Set the color for new group option icon in new chat page

Chat / Group Profile Page Icons

TapComponentColorType

Description

TAPComponentColorIconChatProfileMenuNotificationActive

Set the color for active state notification icon in profile page menu

TAPComponentColorIconChatProfileMenuNotificationInactive

Set the color for inactive state notification icon in profile page menu

TAPComponentColorIconChatProfileMenuConversationColor

Set the color for conversation color icon in profile page menu

TAPComponentColorIconChatProfileMenuBlockUser

Set the color for block user icon in profile page menu

TAPComponentColorIconChatProfileMenuSearchChat

Set the color for search chat icon in profile page menu

TAPComponentColorIconChatProfileMenuClearChat

Set the color for clear chat icon in profile page menu

TAPComponentColorIconGroupProfileMenuViewMembers

Set the color for view members icon in profile page of group chat

TAPComponentColorIconGroupMemberProfileMenuAddToContacts

Set the color for add to contact icon in profile page of group chat

TAPComponentColorIconGroupMemberProfileMenuSendMessage

Set the color for send message icon in profile page of group chat

TAPComponentColorIconGroupMemberProfileMenuPromoteAdmin

Set the color for promote admin icon in profile page of group chat

TAPComponentColorIconGroupMemberProfileMenuDemoteAdmin

Set the color for demote admin icon in profile page of group chat

TAPComponentColorIconGroupMemberProfileMenuRemoveMember

Set the color for remove member icon in profile page of group chat

Media / Image Detail Preview Icons

TapComponentColorType

Description

TAPComponentColorIconMediaPreviewAdd

Set the color for add icon in media preview

TAPComponentColorIconMediaPreviewWarning

Set the color for warning icon in media preview

TAPComponentColorIconMediaPreviewThumbnailWarning

Set the color for warning icon in media preview thumbnail

TAPComponentColorIconMediaPreviewThumbnailWarningBackground

Set the color for warning icon's background in media preview thumbnail

TAPComponentColorIconSaveImage

Set the color for save image icon in media preview

TAPComponentColorIconMediaListVideo

Set the color for video icon in media list

Location Picker Icons

TapComponentColorType

Description

TAPComponentColorIconLocationPickerMarker

Set the color for location picker marker icon in pick location page

TAPComponentColorIconLocationPickerRecenter

Set the color for location picker recenter icon in pick location page

TAPComponentColorIconLocationPickerRecenterBackground

Set the color for location picker recenter icon's background in pick location page

TAPComponentColorIconLocationPickerSendLocation

Set the color for location picker send location icon in pick location page

TAPComponentColorIconLocationPickerSendLocationBackground

Set the color for location picker send location icon's background in pick location page

TAPComponentColorIconLocationPickerAddressActive

Set the color for location picker address icon in active state

TAPComponentColorIconLocationPickerAddressInactive

Set the color for location picker address icon in inactive state

Scan Result Icons

TapComponentColorType

Description

TAPComponentColorIconCloseScanResult

Set the color for scan result icon

TAPComponentColorIconCloseScanResultBackground

Set the color for scan result icon's background

TAPComponentColorIconCloseScanResultBackground

Set the color for scan result icon's background

Chat Room Page Icons

TapComponentColorType

Description

TAPComponentColorIconUserStatusActive

Set the color for active state user status icon in chat room page

TAPComponentColorIconLocationBubbleMarker

Set the color for location bubble marker icon in chat room page

TAPComponentColorIconQuotedFileBackground

Set the color for quoted file icon's background in chat room page

TAPComponentColorIconDeletedChatRoom

Set the color for deleted chat room icon in chat room page

TAPComponentColorIconChatRoomScrollToBottomBackground

Set the color for scroll to bottom icon's background in chat room page

TAPComponentColorIconChatRoomScrollToBottom

Set the color for scroll to bottom icon in chat room page

TAPComponentColorIconChatRoomUnreadButton

Set the color for unread button icon in chat room page

TAPComponentColorIconChatRoomFloatingUnreadButton

Set the color for floating unread button icon in chat room page

TAPComponentColorIconChatComposerBurgerMenuBackground

Set the color for burger menu icon of chat composer in chat room page

TAPComponentColorIconChatComposerShowKeyboardBackground

Set the color for show keyboard menu icon of chat composer in chat room page

TAPComponentColorIconChatComposerAttach

Set the color for attach icon of chat composer in chat room page

TAPComponentColorIconFilePrimary

Set the color for file icon in right message bubble

TAPComponentColorIconFileWhite

Set the color for file icon in left message bubble

TAPComponentColorIconFileUploadDownloadPrimary

Set the color for upload or download file icon in right message bubble

TAPComponentColorIconFileUploadDownloadWhite

Set the color for upload or download file icon in left message bubble

TAPComponentColorIconCancelUploadDownloadPrimary

Set the color for cancel upload or download file icon in right message bubble

TAPComponentColorIconCancelUploadDownloadWhite

Set the color for cancel upload or download file icon in left message bubble

TAPComponentColorIconFileRetryUploadDownloadPrimary

Set the color for retry upload or download file icon in right message bubble

TAPComponentColorIconFileRetryUploadDownloadWhite

Set the color for retry upload or download file icon in left message bubble

TAPComponentColorIconFilePlayMedia

Set the color for play media icon in chat room page

Font Style

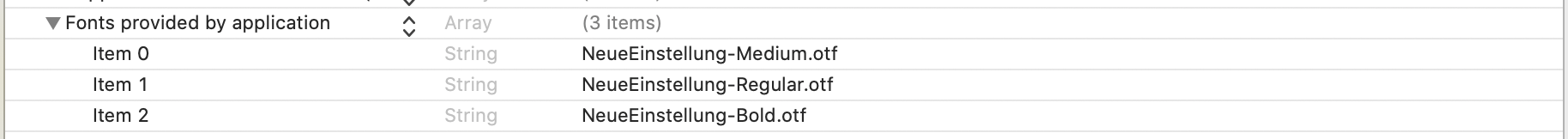

If you are using a custom font on your application, don't forget to add key 'Fonts Provided by application' in your info.plist file. Otherwise, font won't be loaded

Customize default font style

To use your application's font resource in the chat UI, set the following values in TapStyleManager method with the following example:

#import <TapTalk/TAPStyleManager.h>

//You can use this method
[[TAPStyleManager sharedManager] setDefaultFont:FONT forType:TYPE];

//For example
//Set your default regular color
[[TAPStyleManager sharedManager] setDefaultFont:FONT forType:TAPDefaultFontRegular];

Obtain default font style

To use your application's font resource in the chat UI, you can obtain UIFont by using this method.

#import <TapTalk/TAPStyleManager.h>

//Obtain regular font
UIFont *obtainedFont = [[TAPStyleManager sharedManager] getDefaultFontForType:TAPDefaultFontRegular];

TAPDefaultFontType

Description

TAPDefaultFontRegular

Your defined default font family with regular style

TAPDefaultFontMedium

Your defined default font family with medium style

TAPDefaultFontBold

Your defined default font family with bold style

TAPDefaultFontItalic

Your defined default font family with italic style

Customize component font style & color

You can also override the component's font style and color to customize specific text styles to your liking, or you you may also override their respective color value if you wish to change only the color of the text.

#import <TapTalk/TAPStyleManager.h>

//You can use this method to set the font for specific component
[[TAPStyleManager sharedManager] setComponentFont:FONT forType:TAP_COMPONENT_FONT_TYPE];

//And use this method to set the color for the specific component
[[TAPStyleManager sharedManager] setTextColor:COLOR forType:TAP_TEXT_COLOR_TYPE];

//For example if you wish to set the style for your title label, you can use the following methods:

//Set the font (consist of font name and size)
[[TAPStyleManager sharedManager] setComponentFont:FONT forType:TAPComponentFontTitleLabel];

//Set the color
[[TAPStyleManager sharedManager] setTextColor:FONT forType:TAPTextColorTitleLabel];

Note You can choose to specified one of the following methods. If you wish to change just the font, just use setComponentFont method, and if you wish to change just the text color, you can use setTextColor method.

PreviousMessage Type NextCustomize Chat Features

Last updated 2 years ago

TapTalk.io Documentation

Customize UI Appearance

Default Color Theme

Customize default color theme

Obtain default color theme

General Colors

Customize general colors

Obtain general colors

Components Colors

Customize component colors

Obtain component colors

Component Color Type

Default Components

Chat Bubble

Text Field

Button

Switch

Icon Colors

Customize icon colors

Obtain icon colors

Icon Color Type

Default Icons

Navigation Bar Icons

Action Sheet Icons

Room List Page Icons

New Chat Page Icons

Font Style

Customize default font style

Obtain default font style

Customize component font style & color
